Rear Shock: RockShox Monarch RT3 Rear Shock （200x 51mm）

The lightweight design not only delivers silky smooth travel, but thanks to a redesigned Solo Air spring with updated damping controls, it also delivers a spring rate you d generally only get from a much heavier coil shock. So you get a durable, fully adjustable shock capable of smoothing out the most aggressive trails, while simultaneously saving you weight for epic cross country riding. The Monarch RT3 features external rebound and 3-Position compression adjustment (Open/Pedal/Lock).

Suspension Fork: Rockshox Bluto （15*150mm）

Travel：100mm

The RockShox chassis got the fat treatment by reengineering it to meet the unique needs of fat tires and wheels. Everything from crown, to arch, to axle has been optimized to tackle the increased torsional loads of its wide stance. With more traction and control than ever before, you ll never be happier you went fat.

Carbon Wheels:

Front Hub: 150mm, Powerway M74, 32H

Rear Hub: 197mm, Powerway M74, 32H

Spokes: Sapim Basic Leader Round

Rims: Carbon, 90mm Wide, 20mm Deep, Clincher Tubeless Ready, ICAN Logo

Tires: Maxxis 26*4.8 inch 20psi, 120 Tpi

You can buy the 90C fat bike wheels here

Please note the max Tires of the 16-inch size is Maxxis 26*4.0 inch tire

GROUPSET: SRAM NX Eagle

SRAM NX Eagle is ready for action and ready to take you there. NX Eagle brings you a wide range of gear choices engineered for simplicity and durability, so you can focus on what matters most-the ride ahead. German engineered and proudly bearing the SRAM Eagle stamp of approval, NX Eagle is ready to let the world know what real riding feels like.

SRAM BRAKES LEVEL : DB LVL

Color: Black

ORIENTATION: L/F R/R

The SRAM Level brake levels the playing field with power and reliability stuffed into a lightweight package. This is a no-nonsense performer, but don't let its understated disposition fool you - Level gives you the art of braking in minimalist form.

TRIGGER SHIFTER: NX EAGLE TRIGGER SHIFTER

NX Eagle™ trigger shifter means on-demand gear selection throughout the entire wide range Eagle™ cassette. The massive range means you never have to worry about having the right gear for the terrain. NX Eagle™ means easy, intuitive shifting every time for every rider.

REAR DERAILLEUR: NX EAGLE REAR DERAILLEUR

NX Eagle™ derailleur features the proven SRAM 1x-specific X-HORIZON™ design. The larger, 14-tooth X-SYNC™ lower pulley easily facilitates 11- to 50- and 10- to 50-tooth cassette capacity, and also adds to NX Eagle's overall smooth-pedaling feel. The Type-3 ROLLER BEARING CLUTCH™ provides quiet, consistent performance and durability.

CHAIN: NX EAGLE

The basis of every Eagle drivetrain is its chain-and the NX Eagle chain is designed and manufactured using genuine SRAM's Eagle architecture, so it is fully compatible with every other component in the Eagle ecosystem. The NX Eagle chain features solid pin construction, Eagle PowerLock and smooth, efficient shifting that you can count on every time out.

SRAM DUB BSA Bottom Bracket

SRAM DUB bottom bracket series has a simple job-connect your crankarms and protect the smooth, long-lasting application of power to your drivetrain. To allow that singular focus, we've engineered the DUB spindle to be the one true unifying component. One oversized spindle to work across every bottom bracket standard. For better crankarm compatibility. For better protection from the elements. For longer-lasting performance. To be stronger, smoother, simpler. Now, back to the ride.

Ride anywhere with the wide-range PG-1230, 11- to 50-tooth Eagle cassette. The NX cassette gives riders every bit of the climbing range that the Eagle™ ecosystem affords with a simple upgrade to splined-drive body wheels.

140MM DISC ROTORS

Attachment Type：six-bolt

CRANKSET: FIRST Crankset made in TAIWAN

The crankset is that part of a bicycle drivetrain that transmits power from a rider’s legs into the motion that drives the chain (or belt as is increasingly the case these days). This motion then turns the rear wheel.

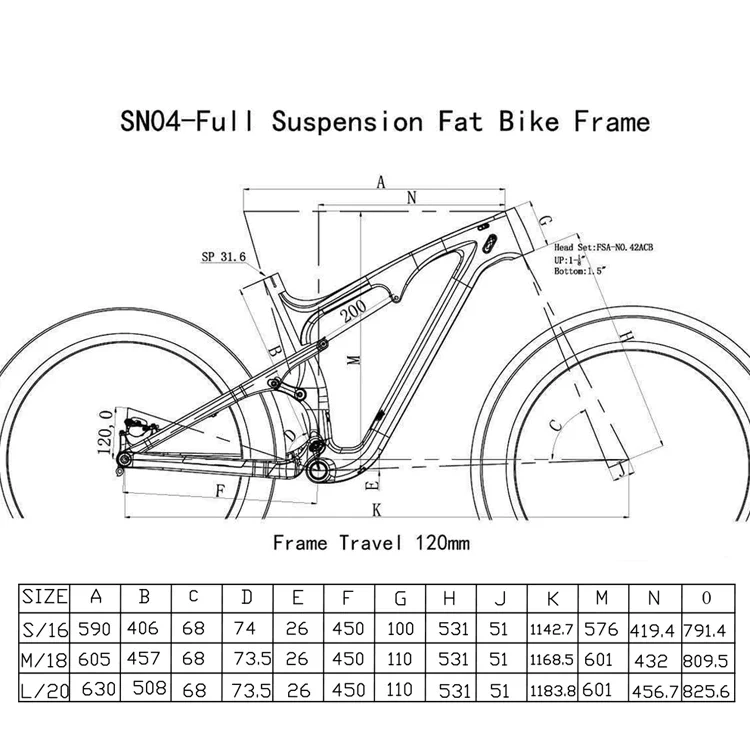

Frame :

Model: full suspension fat bike SN04

Material: Carbon Fiber Toray T700

Size option : 16/18/20 inch

BB: BSA(120mm)

Rear Spacing: 12*197mm

Size: 16'' ,18'',20''

Please note the max Tires of the 16-inch size is Maxxis 26*4.0 inch tire

Buy the frame here

MAX TIRE SIZE:

26×3.8—4.8” on up to a 100mm rim

29×2.25—3” (including 29+)

27.5×3.0—3.25”(27.5+)

COMPONENTS:

Headset: Integrated, Sealed Bearings, H373

Stem: ST04, Alloy 35mm

Handlebar: HB-35, Carbon 35*800mm, UD Matt

Seat Post: EXP Adjust

Seat Post Clamp: Carbon 34.9mm, CSC01-SL

Saddle: Carbon Saddle

Handlebar Grip: Sram

Weight: Complete Bike Weight 16.4kg(Pedal not included )

About the groupset：

Eagle is a complete drivetrain system that was developed to be an integrated high-performance ecosystem. The engineering and testing that went into the development provide for maximum performance, safety, and long-term durability to ensure a great consumer ride experience. We guarantee this performance when Eagle drivetrains are used as a complete ecosystem.

PG-1230 EAGLE CASSETTE

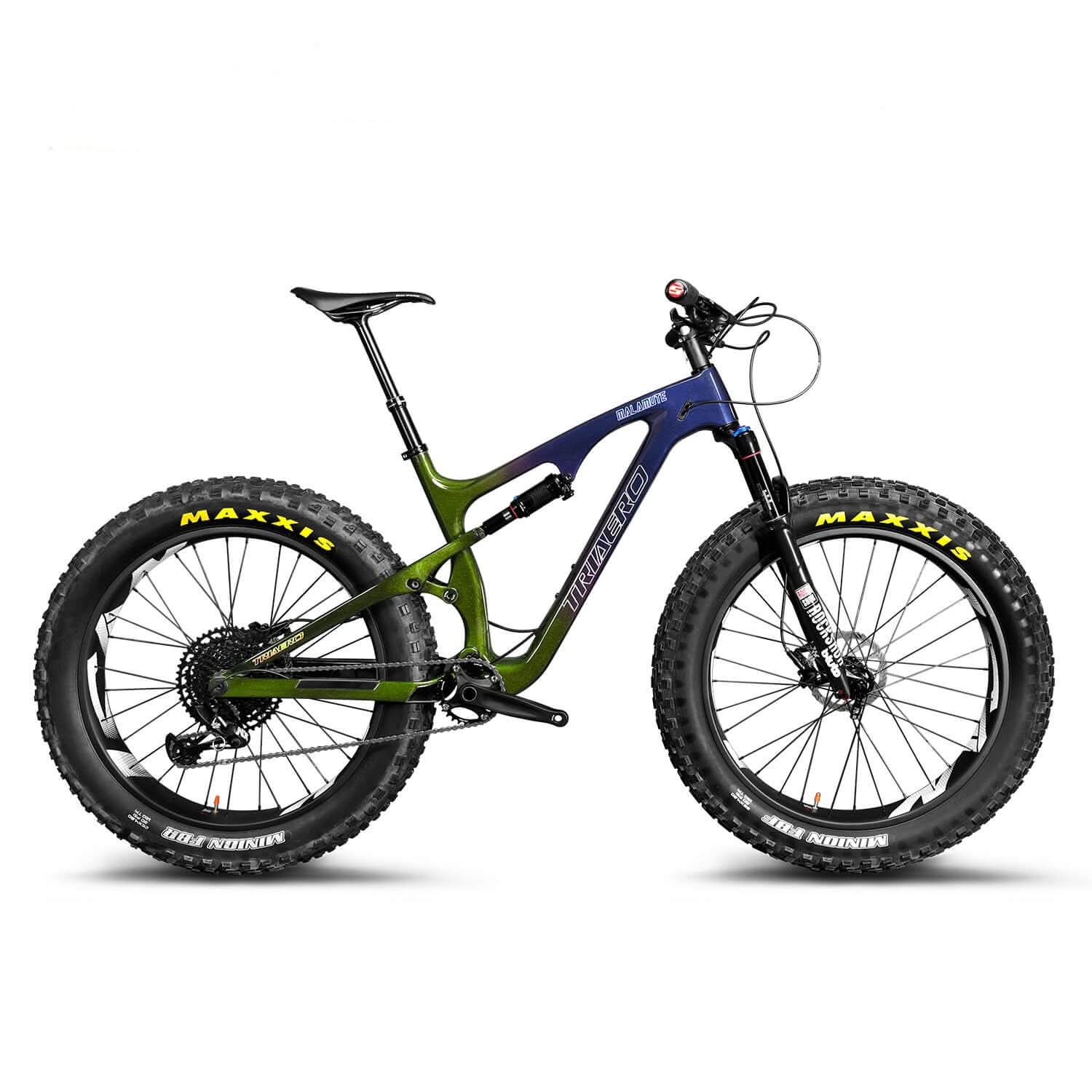

Fat Bike SN04 Rainbow

Full Suspension Fat Bike SN04

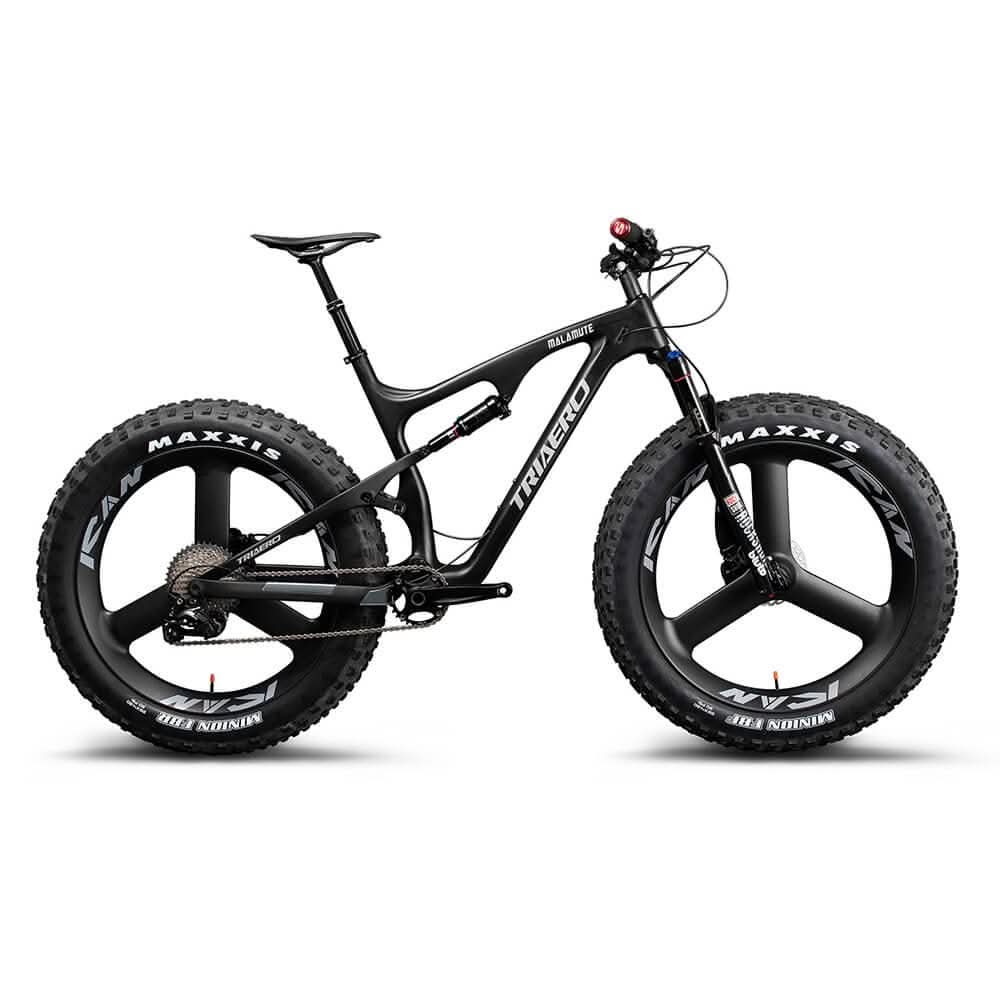

3S Spoke Wheels Fat Bike SN04
